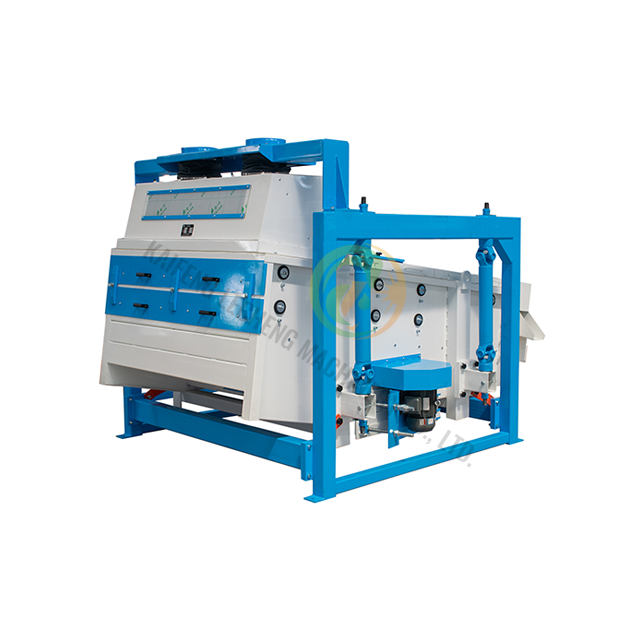

The HZXZ High-Efficiency Rotary Vibration Cleaner is a professional equipment engineered for large-capacity granular material cleaning and grading. It is primarily designed to remove large, medium and small impurities from raw materials, and is widely applied in the grain, feed, food, chemical and liquor making industries. The machine features a compact footprint and robust structure, making it ideal for integration into various production lines, such as flour mill grain pre-processing, seed cleaning operations, rice mill paddy cleaning and pulse processing. Its high-efficiency impurity removal capability ensures that processed materials meet strict quality standards, enhancing the overall productivity of downstream production processes.
The machine achieves an impurity removal rate of up to 99.2%, which is far higher than many conventional cleaning equipment on the market. This high efficiency ensures that even tiny and stubborn impurities are separated from the target materials.
It supports customizable screen configurations with 3-5 layers, allowing users to adjust the screening parameters according to different material characteristics and processing requirements. This flexibility greatly expands the machine's application scope.
With a power consumption range of only 2.2-7.5kW, the machine realizes low energy consumption while maintaining high output. Its contact surfaces are made of food-grade stainless steel, complying with food safety regulations and suitable for processing edible materials.

It has a high-efficiency impurity removal function, with an impurity removal rate of up to 99.2%.
Yes. It has customizable screen configurations with 3-5 layers to meet different processing requirements.
The capacity range is 5-50 tons/hour, which can meet the needs of different production scales.
The contact surface is made of food-grade stainless steel, which meets food safety standards.
Heavy-duty steel frame equipped with vibration dampeners, which effectively reduces vibration and noise during operation, ensuring stable and reliable performance.
Precision-balanced eccentric weights that provide consistent and adjustable amplitude for multi-stage vibration cleaning, adapting to different material processing needs.
Quick-release screen changing system that enables fast and convenient screen replacement, minimizing downtime during production line adjustment.
Rubber-mounted vibration motors that enhance vibration stability and extend the service life of the motor.
Optional automatic lubrication system that reduces manual maintenance workload and ensures long-term smooth operation of the machine.
Integrated dust collection port that effectively collects dust generated during cleaning, improving the workshop environment and reducing dust pollution.
Standard compact footprint of 2.5×1.8m, which saves workshop space and facilitates layout optimization.
The HZXZ High-Efficiency Rotary Vibration Cleaner offers multiple models, including HZXZ150×250 (2-layer), HZXZ150×250A (3-layer), HZXZ200×250 (2-layer), HZXZ200×250A (3-layer), HZXZ200×300 and HZXZ200×360. The pre-cleaning capacity ranges from 50t/h to 120t/h when using meshes of Φ10-Φ12, while the cleaning capacity is 30t/h to 80t/h with meshes of Φ6.5-Φ7. The sieve area varies from 3.75m² to 7.2m² across different models. All models operate at a speed of 320r/min, with a power of 3-4kW. The weight of the machine ranges from 2800kg to 3800kg, and the overall dimensions span from 2988×2205×2105mm to 4150×2815×2105mm, catering to different workshop space and production capacity requirements.
Model | HZXZ150*250 (2-layer) | HZXZ150*250A (3-layer) | HZXZ200*250 (2-layer) | HZXZ200*250A (3-layer) | HZXZ200*300 | HZXZ200*360 |
Precleaning(t/h) (meshΦ10-Φ12) | 50 | 50 | 60 | 60 | 80 | 120 |
cleaning(t/h) (meshΦ6.5-Φ7) | 30 | 30 | 40 | 40 | 60 | 80 |
Sieve Area(m2) | 3.75 | 3.75 | 5 | 5 | 6 | 7.2 |
Speeed(r/min) | 320 | |||||
Powder(KW) | 3 | 3 | 4 | 4 | 4 | 4 |
Weight(kg) | 2800 | 2900 | 3200 | 3300 | 3500 | 3800 |
Overall Dimension (L*W*H)(MM) | 2988*2205*2105 | 2988*2205*2105 | 2988*2705*2105 | 2988*2705*2105 | 3549*2755*2105 | 4150*2815*2105 |
